Product details of the 1 ton mini digger
Product Description
The novel design put forward by Qingdao Fullwin Machinery Co.,Ltd realizes more scientific and efficient management of 1 ton mini digger. Our integrated QC system ensures that every product is complete as promise. Qingdao Fullwin Machinery Co.,Ltd has gained its good reputation for its high quality 1 ton mini digger.
Product Introduction

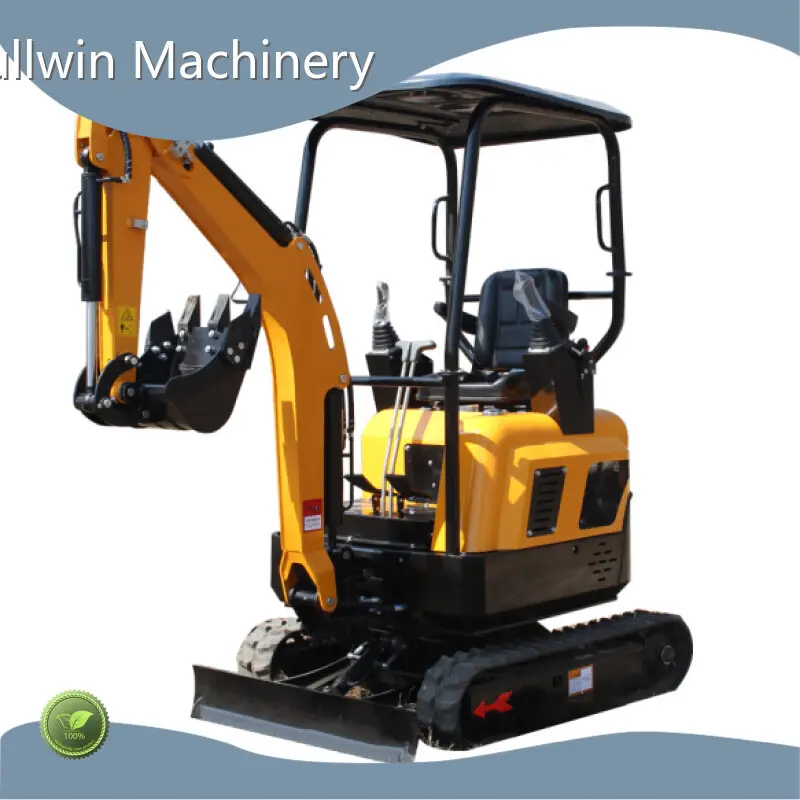

FW18T Mini Excavator embodies a cutting-edge blend of ergonomic design, advanced technology, and superior performance. It boasts flip-up joysticks for seamless access, an LCD display for intuitive information display, and an upgraded seat with armrests for operator comfort. With a complete counterweight and widened 1.1m chassis, the excavator ensures steady operation. Its upper boom cylinder design prevents damage during arm tightening, while foldable foot pedals maximize footroom. The engine is powerful yet eco-friendly, meeting the highest European standards for performance, noise, and emissions. Enhanced crawler tracks ensure durability and longevity, while the hydraulic system's layout simplifies maintenance. Intelligent monitoring instruments and simple liner-type construction further ease maintenance and installation. Equipped with world-class components in pneumatic, electric, and operational parts, FW18T operates with high automation and intelligence, emitting zero pollution. Additionally, its compatibility with air conveyor and filling machine systems streamlines production processes.
Product Details
Product Parameters
|
FW18J specifcation |
||
|
The machine operating weight |
1650kg |
|
|
Bucket capcity |
0.025m³ |
|
|
Engine model |
Kubota D722 |
|
|
Type |
Three-cylinder, in-line, water-cooled, four-stroke, mechanical pump, naturally aspirated |
|
|
Rated power |
10.4kW/2500rpm |
|
|
Max torque |
45Nm/2500rpm |
|
|
Displacement |
0.719L |
|
|
Main performance |
||
|
walking speed |
1.8km/h |
2.3/4.5Km/h |
|
Rotation speed |
12-13 |
|
|
Gradeability |
58%（30°） |
|
|
Ground press |
23kPa |
|
|
Bucket digging force |
9kN |
|
|
Arm Digging Force |
5.5kN |
|
|
Oil and coolant capacity |
||
|
fuel tank |
14.5L |
|
|
hydraulic oil tank |
14.5L |
|
|
engine oil |
3.2L |
|
|
Working range |
||
|
Max digging height（mm） |
2955 |
|
|
Max unloading height |
2077 |
|
|
Maximum digging depth |
2017 |
|
|
Maximum vertical depth（mm） |
1610 |
|
|
Maximum digging radius |
3529 |
|
|
Tail radius（mm） |
655 |
|
|
Minimum turning radius |
1812 |
|
|
Bulldozer lift maximum |
236 |
|
|
Maximum sinking depth |
229 |
|
|
Swing arm deflection Angle |
50° |
|
|
Swing arm deflection Angle tothe right |
52° |
|
|
Whole machine size |
||
|
Overall length |
3329 |
|
|
Overall width |
990 |
|
|
Overall height（mm） |
2267 |
|
|
Dozer board height（mm） |
210 |
|
|
Track plate width（mm） |
200 |
|
|
Track gauge（mm） |
790（1100） |
|
|
Track grounding length（mm） |
1190 |
|
|
Minimum ground clearance（mm） |
153 |
|
|
Tail swing radius（mm） |
655 |
|
Company Advantage
• After years of exploration and growth, Fullwin Machinery has accumulated rich industry experience, enjoying a high popularity in the industry.
• Our company's products have a high reputation in the market, so they are sold well in the domestic and foreign markets including br /> • Fullwin Machinery is dedicated to providing considerate services based on customer demand.
• Fullwin Machinery's location enjoys the advantageous geographic condition and all-sided traffic unimpeded access. And it is convenient for the transportation of various products, so we can ensure that the source of goods would be supplied in time.
