Construction Machine Supplier FY45 - - Fullwin Machinery
Product details of the construction machine supplier
Product Overview
This product is reliable, efficient, attractive, has flawless finishing and so many qualities. This product is thoroughly inspected as per the quality guidelines. Various in function and wide in application, the construction machine supplier can be used in many industries and fields. By performing strict quality assurance, the quality of construction machine supplier is guaranteed.
Product Information
The main differences between Fullwin Machinery's construction machine supplier and similar products are as follows.
Product Introduction

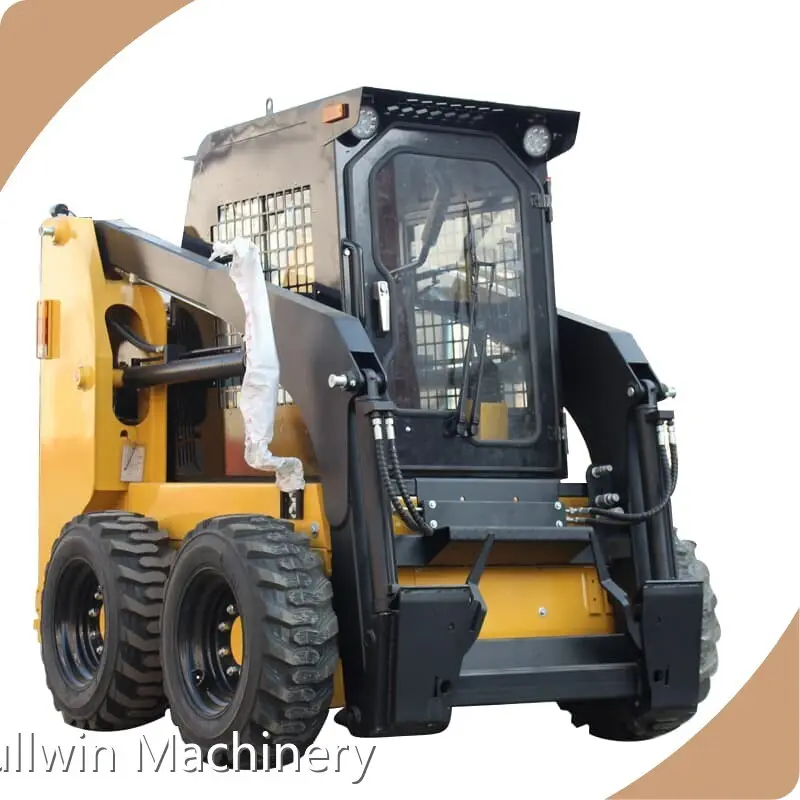

The FY45 mini skid loader stands out from the crowd with its extraordinary lifting capacity and excellent traction. It can easily cope with various operational challenges and demonstrate extraordinary work efficiency. Its spacious cab is matched with comfortable seats and combined with a user-friendly operating interface, so you can enjoy a comfortable experience even after long hours of operation, making work no longer tiring. The powerful combination of Danfoss motors from the United States and hydraulic pumps made by Seiko from Italy has set a new benchmark in power and durability for the FY45, ensuring that every component meets top quality standards. What is more worth mentioning is that its rich optional accessories design makes the FY45 a true all-rounder. Whether it is garden maintenance, construction sites or agricultural operations, it can be easily handled, redefining versatility in the industry. Choosing the FY45 means choosing the perfect combination of efficiency, comfort and quality, making each of your projects more efficient and leading the new trend in the industry.
Product Details
Product Parameters
|
FY45 Mini Excavator whole Specifications |
||
|
Rated operating capacity(kg) |
700 |
|
|
Tipping load(kg) |
1400 |
|
|
Bucket capacity(m3) |
0.4 |
|
|
Operationg weight(kg) |
2700 |
|
|
Max. travel speed(km/h) |
12 |
|
|
Hydraulic pump flow(L/min) |
75 |
|
|
Fuel tank capacity(L) |
80 |
|
|
Tires |
10-16.5 |
|
|
Overall dimensions(mm) |
3420×1740×2140 |
|
|
Dimension |
||
|
Height at maximum extension(mm) |
3980 |
|
|
Height to bucket hinge pin(mm) |
3080 |
|
|
Width with bucket(mm) |
1740 |
|
|
Track width(mm) |
1450 |
|
|
Wheelbase(mm) |
991 |
|
|
Ground clearance(mm) |
185 |
|
|
Dump angle |
40° |
|
|
Dumping height(mm) |
2380 |
|
|
Maximum reach(mm) |
700 |
|
|
Engine |
||
|
Maker/Model |
XINCHAI 490 |
|
|
Net power |
37KW/2500rpm |
|
|
Type |
4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine |
|
|
Standard |
||
|
Open-type operator cab |
Hand control system(Mechanical type) |
|
|
Standard bucket |
Auxiliary hydraulic couplers |
|
|
Optional |
||
|
Enclosed operator cab with A/C |
Cab fitted with a heater as standard |
|
|
Hydraulic joystick controls |
|
|
|
Attachments： |
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork, Combination bucket,Mower,Asphalt cutter,and More |
|
Company Information
As a professional company in the industry, Qingdao Fullwin Machinery Co.,Ltd is mainly engaged in mini excavator,mini skid steer loader,forklift and attachment etc. Fullwin Machinery is committed to providing satisfactory services for customers. With years of experience in production, we guarantee our product quality so you can purchase them with confidence. Feel free to contact us!
