Construction Machinery FW40J by Fullwin Machinery
Product details of the construction machinery
Quick Detail
Fullwin Machinery construction machinery is designed based on the results of the in-depth survey of global market needs. This product has passed through many international certifications. Qingdao Fullwin Machinery Co.,Ltd plans the quality management system and meet the quality object.
Product Information
The details of construction machinery are presented to you in the following section.
DESCRIPTION

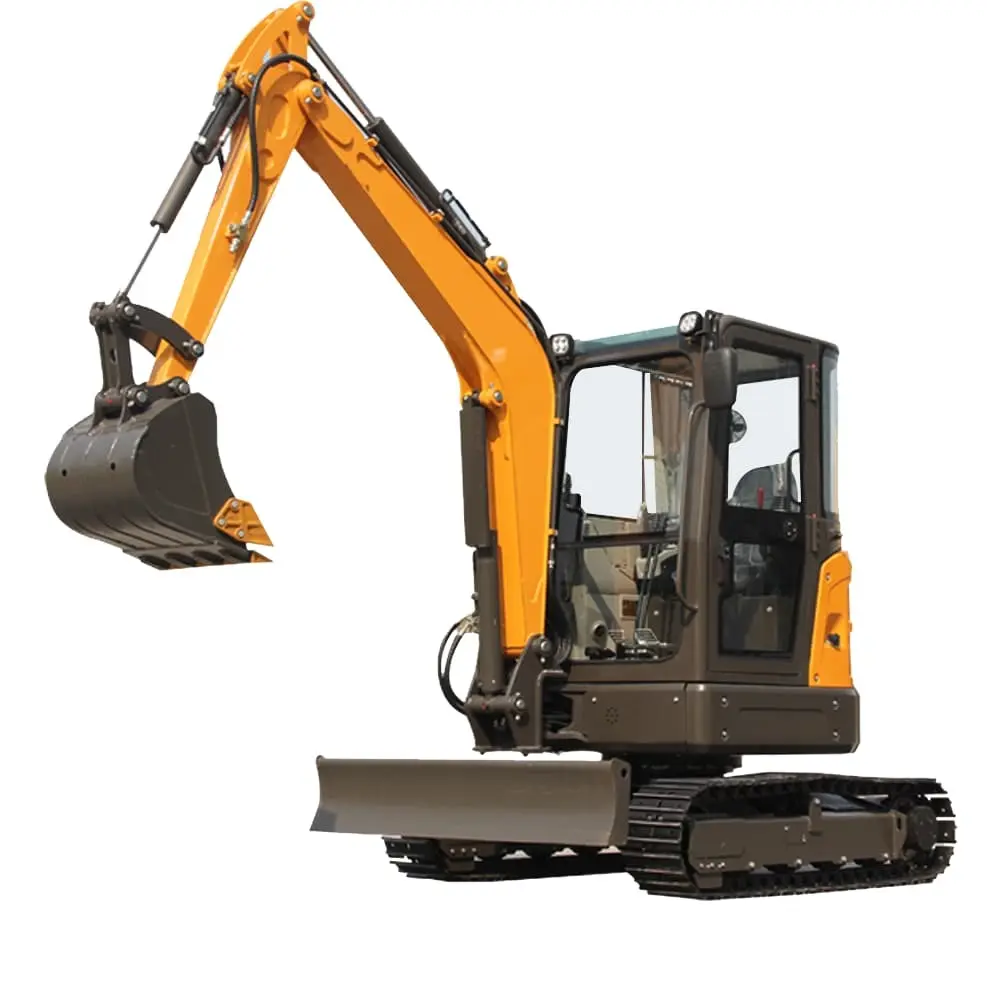

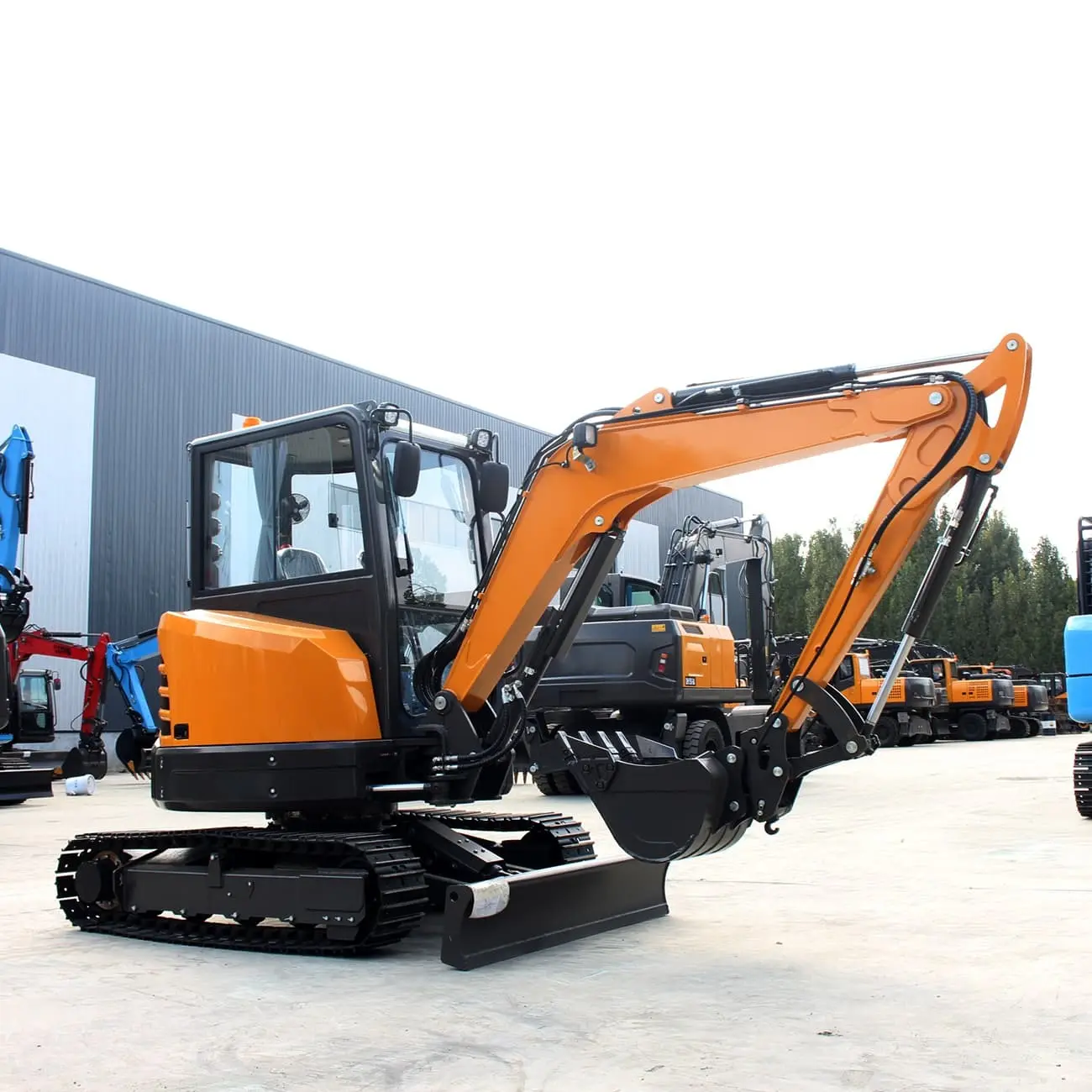

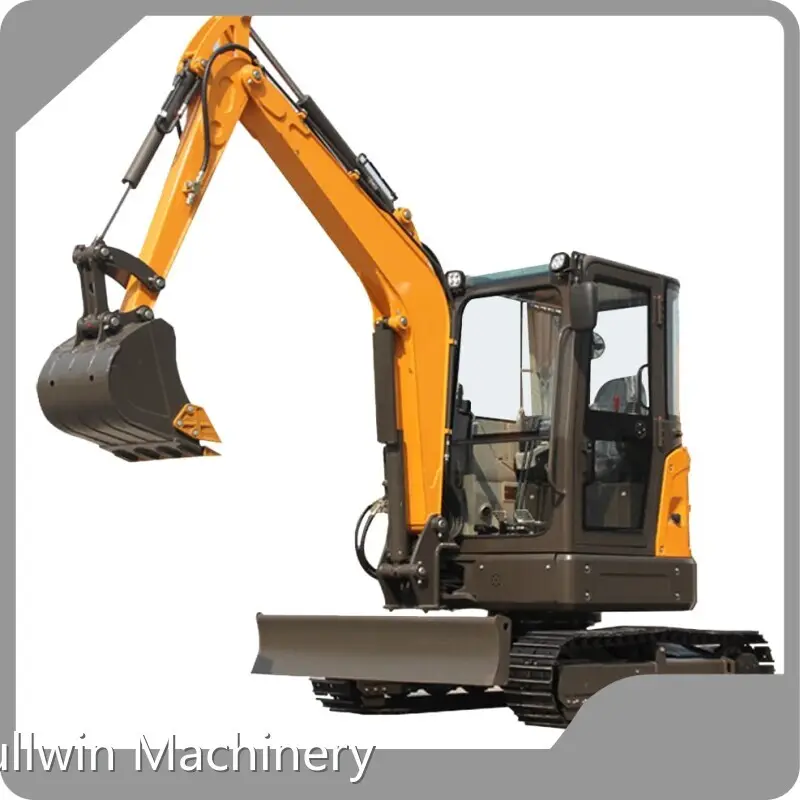

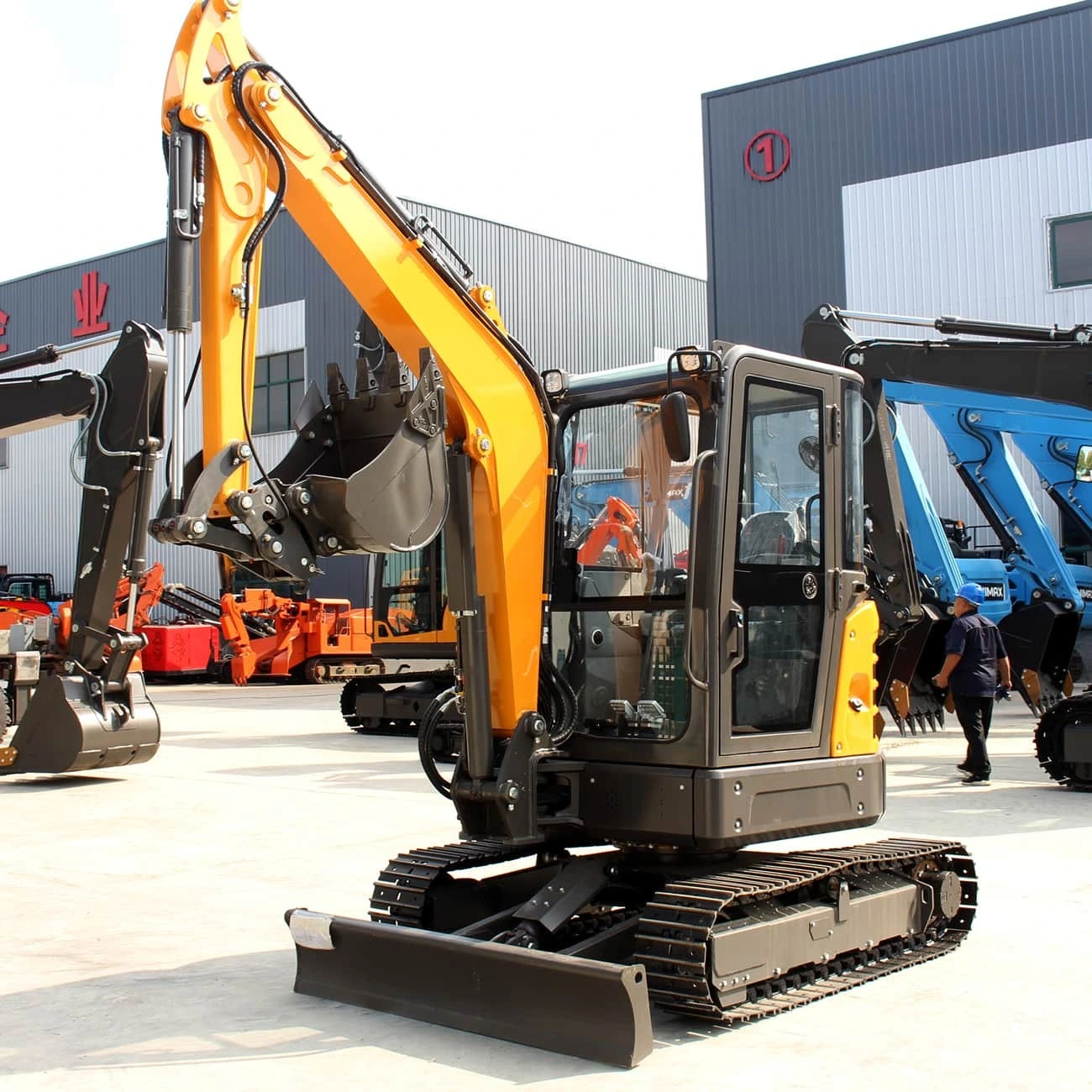

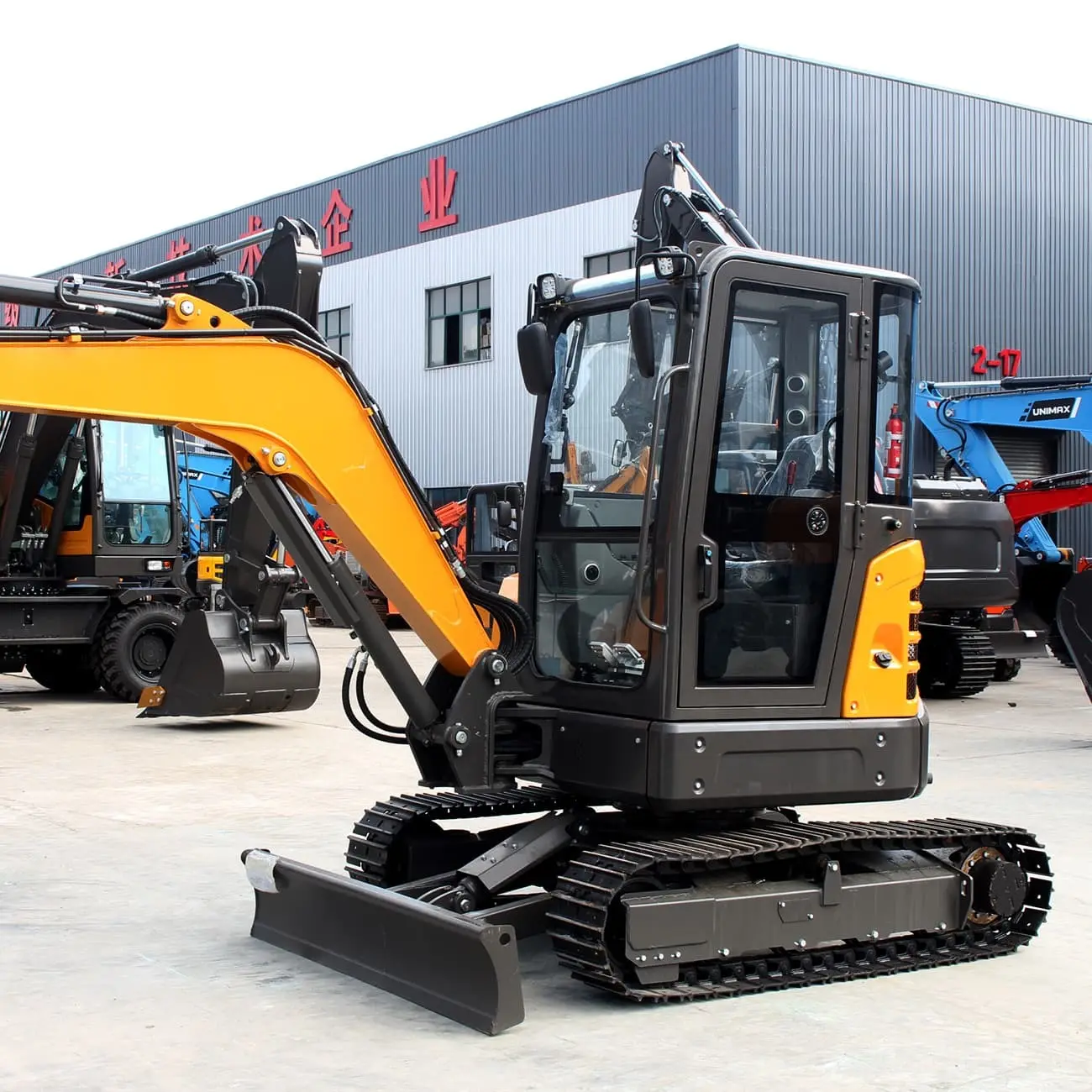

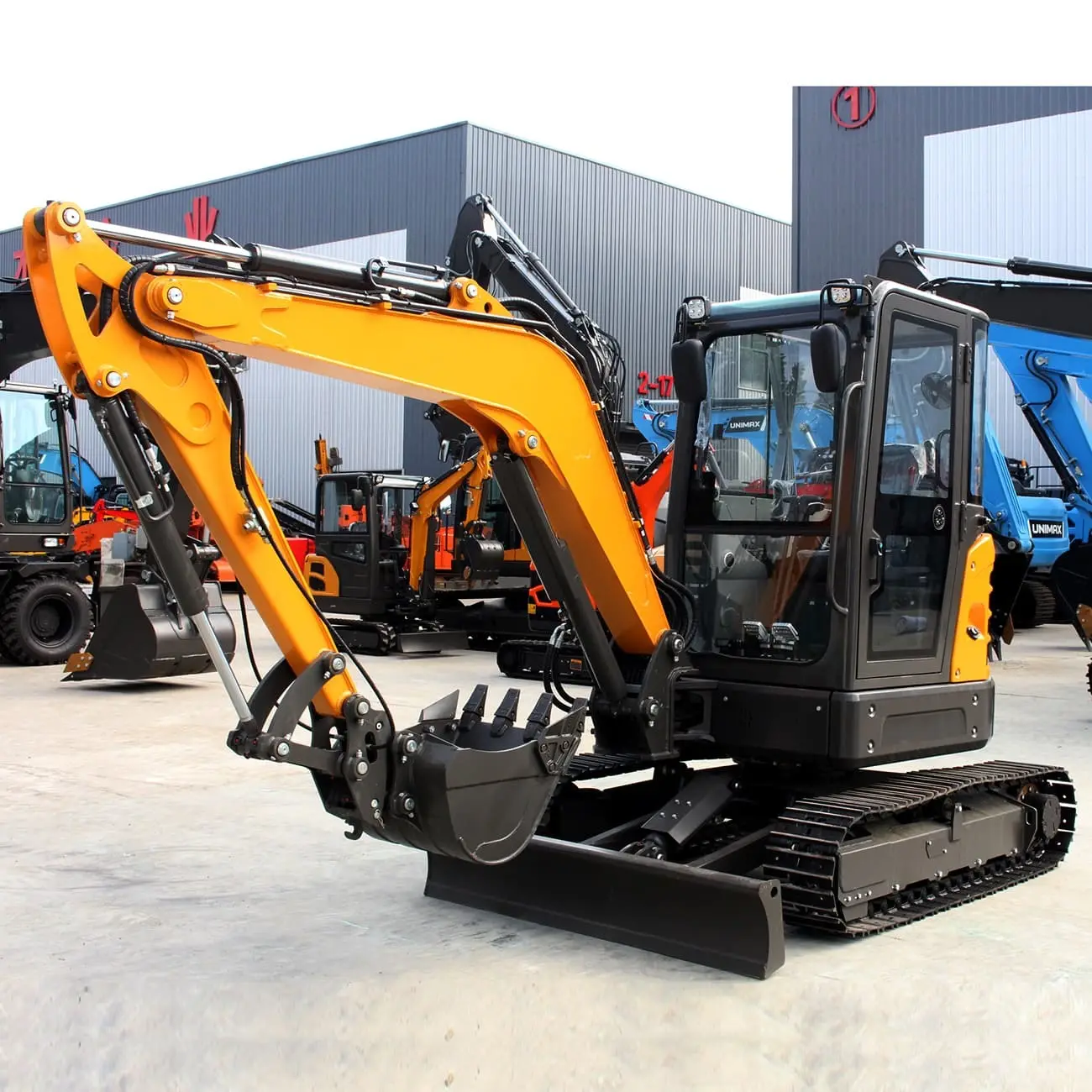

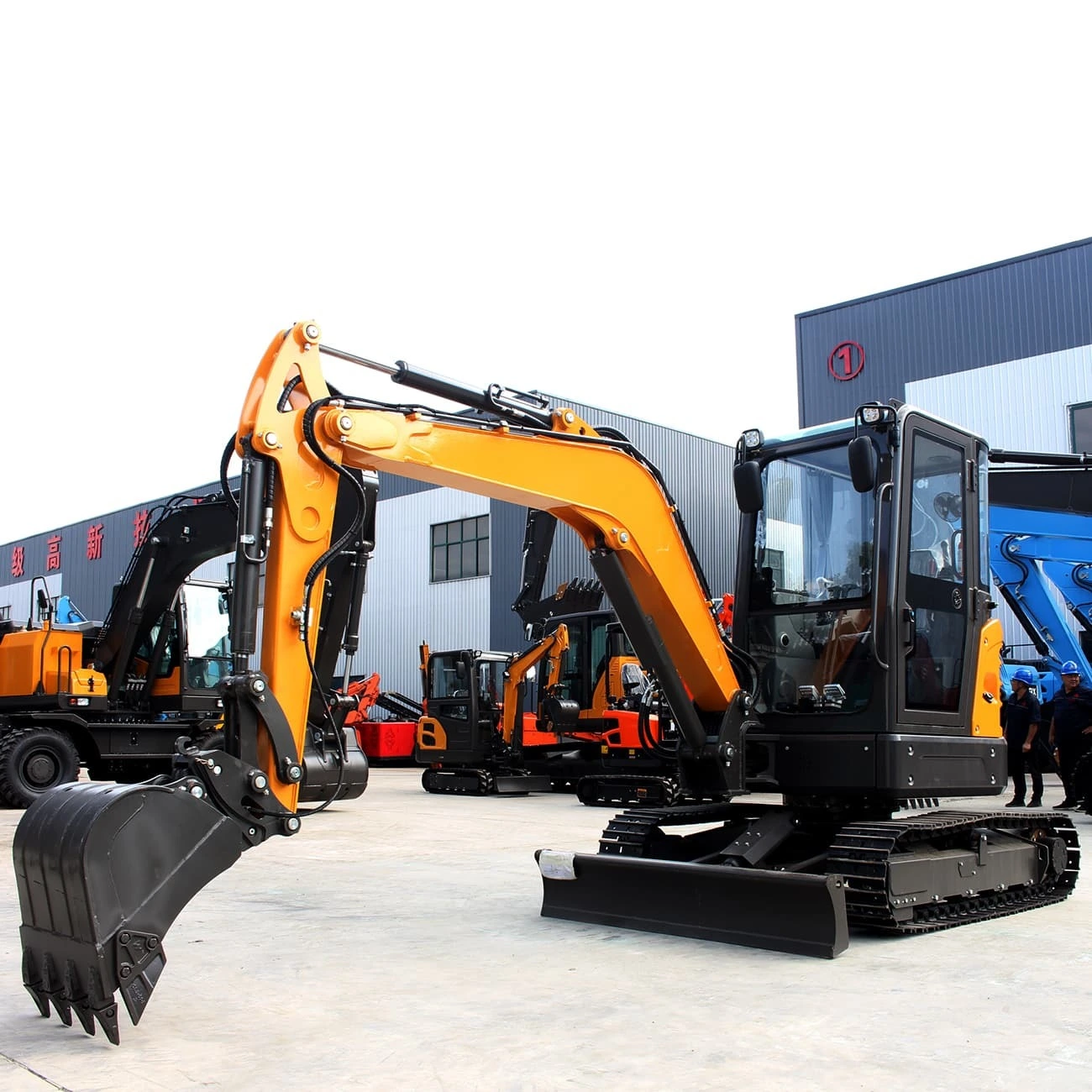

Introducing the FW40J Crawler Excavator, a powerful and reliable machine designed for efficient earthmoving and digging. With its advanced features and durable construction, this excavator is the ideal choice for any construction site. Experience top-notch performance and productivity with the FW40J Crawler Excavator.
Product Details
Product Features
Product Parameters
|
Model |
Kubota D1703 18.5KW/2200rpm |
|
Max. Torque |
97.4N.m/1500RPM |
|
Type |
In-line, water cooled, Mechanical pump, normally aspirated |
|
Displacement |
1.647L |
|
No. of cylinder |
3 |
|
Swing Speed |
0-11 |
|
Traveling Speed(high/low) |
4.4/2.4km/h |
|
Grade ability |
58% |
|
Max. Bucket Digging Force |
30.4kN |
|
Arm Digging Force |
18.2kN |
|
Ground Pressure |
32Kpa |
|
Hydraulic system pressure |
22.5Mpa |
|
Machine Weight |
3810kg |
|
Boom Length |
2535mm |
|
Arm Length |
1400mm |
|
Fuel Tank capacity |
42L |
|
Hydraulic Tank capacity |
48.5L |
|
Engine oil capacity |
7L |
|
Carrier roller(each side) |
1 |
|
Supporting roller(each side) |
4 |
|
Overall Length |
4915mm |
|
Overall Width |
1720mm |
|
Overall Height |
2525mm |
|
Mini Ground clearance |
295mm |
|
Track width |
300mm |
|
Axle base(Track length on ground) |
1670mm |
|
Length of track |
2154mm |
|
Track Gauge |
1420mm |
|
Swing radius at tail |
860mm |
|
Swing radius at front |
2538mm |
|
Height of blade |
350mm |
|
Bucket Capacity |
0.12m³ |
|
Max. Digging Radius |
5480mm |
|
Max. Digging Depth |
3208mm |
|
Max. Digging Height |
4800mm |
|
Max. Dumping Height |
3406mm |
|
Max. vertical digging depth |
3208mm |
Company Advantages
Headquartered in qing dao, Qingdao Fullwin Machinery Co.,Ltd is mainly engaged in the business of mini excavator,mini skid steer loader,forklift and attachment etc. Our company offers high-quality services for all customers, focuses on exchanging information with customers, and provides them with the fastest pre-sale and after-sale services. We are responsible for the production of high-quality products, please contact us to order if in need.
