Mini Excavator Price CE/ EPA / ERURO5supply
Company Advantages
· With the advanced equipment, Fullwin Machinery mini excavator price is manufactured in a high efficient manner.
· Our qualified and experienced team guarantees the best quality product to our customers.
· The trend toward increased productivity of Qingdao Fullwin Machinery Co.,Ltd has meant lower prices of its Fullwin Machinery.
Product Introduction

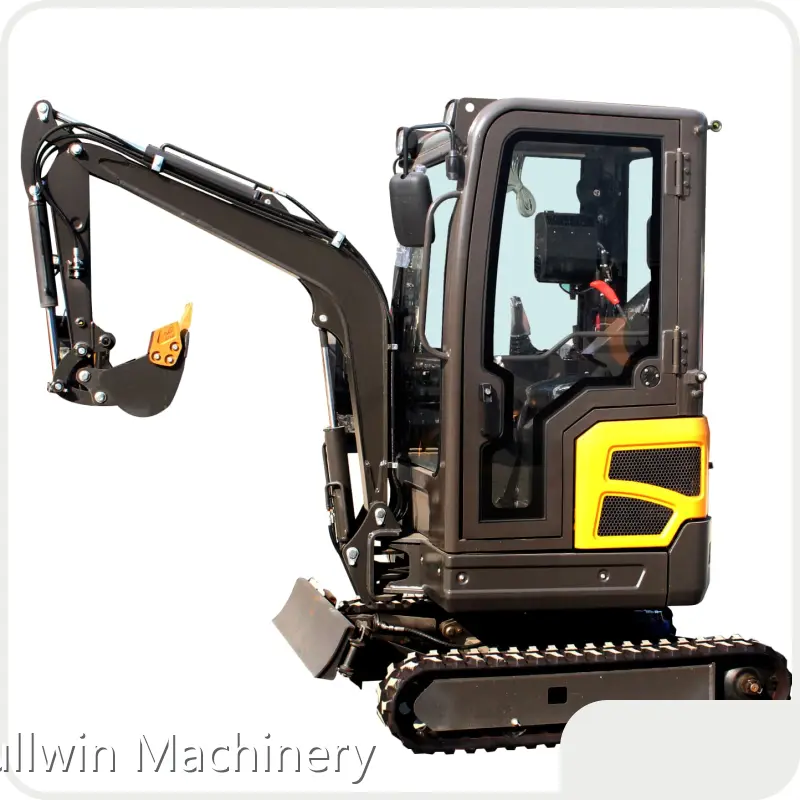

FW18J Diesel Engine Excavator is a 1.8-ton small excavator that stands out in the market for its low price, lightweight body and convenient maintenance. It is widely loved by users for its compact design, high flexibility and excellent working efficiency. The excavator is widely used in urban and rural engineering projects, including road construction, building foundation excavation, water conservancy projects, mining, etc., and can easily handle the loading of loose materials such as gravel and coal.
FW18J is equipped with high-end configurations such as seamless integral molding design, standard swing arm, imported engine and pump valve motor, heat-insulated and sound-insulated cab, zero tail swing design, and widened crawler tracks to enhance performance in soft terrain. The humanized cab design includes one-button start, radio, cup holder, comfortable seat and headrest armrest, which enhances the control experience. At the same time, the concealed hydraulic oil tank and diesel tank design, as well as the cast iron counterweight block, enhance the safety and stability of the equipment, making it a powerful assistant in various engineering projects.
Product Details
Product Parameters
|
FW18J specifcation |
||
|
The machine operating weight |
1650kg |
|
|
Bucket capcity |
0.025m³ |
|
|
Engine model |
Kubota D722 |
|
|
Type |
Three-cylinder, in-line, water-cooled, four-stroke, mechanical pump, naturally aspirated |
|
|
Rated power |
10.4kW/2500rpm |
|
|
Max torque |
45Nm/2500rpm |
|
|
Displacement |
0.719L |
|
|
Main performance |
||
|
walking speed |
1.8km/h |
2.3/4.5Km/h |
|
Rotation speed |
12-13 |
|
|
Gradeability |
58%（30°） |
|
|
Ground press |
23kPa |
|
|
Bucket digging force |
9kN |
|
|
Arm Digging Force |
5.5kN |
|
|
Oil and coolant capacity |
||
|
fuel tank |
14.5L |
|
|
hydraulic oil tank |
14.5L |
|
|
engine oil |
3.2L |
|
|
Working range |
||
|
Max digging height（mm） |
2955 |
|
|
Max unloading height |
2077 |
|
|
Maximum digging depth |
2017 |
|
|
Maximum vertical depth（mm） |
1610 |
|
|
Maximum digging radius |
3529 |
|
|
Tail radius（mm） |
655 |
|
|
Minimum turning radius |
1812 |
|
|
Bulldozer lift maximum |
236 |
|
|
Maximum sinking depth |
229 |
|
|
Swing arm deflection Angle |
50° |
|
|
Swing arm deflection Angle tothe right |
52° |
|
|
Whole machine size |
||
|
Overall length |
3329 |
|
|
Overall width |
990 |
|
|
Overall height（mm） |
2267 |
|
|
Dozer board height（mm） |
210 |
|
|
Track plate width（mm） |
200 |
|
|
Track gauge（mm） |
790（1100） |
|
|
Track grounding length（mm） |
1190 |
|
|
Minimum ground clearance（mm） |
153 |
|
|
Tail swing radius（mm） |
655 |
|
Company Features
· Qingdao Fullwin Machinery Co.,Ltd is a large manufacturer of mini excavator price with strong research and development capabilities.
· Qingdao Fullwin Machinery Co.,Ltd is equipped with perfect testing and inspection equipment. Qingdao Fullwin Machinery Co.,Ltd has built the complete quality and management guarantee system, obtained the ISO9001 certificate. Qingdao Fullwin Machinery Co.,Ltd has a sound quality management system, and a complete quality inspection method to ensure the company's quality and reputation.
· Our company is built on a foundation of values. These values include hard work, building relationships, and providing superior services to our clients. These values make sure the manufactured products portray the image of our customers' company. Inquire online!
Product Details
The mini excavator price we produce are able to stand up to the details.
Application of the Product
Our mini excavator price has been widely used in many industries.
Fullwin Machinery is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.
