Small Excavator Manufacturer 1 Set by Fullwin Machinery
Product details of the small excavator manufacturer
Product Introduction
Fullwin Machinery small excavator manufacturer is designed using excellent and quality materials. The quality control of this product is conducted by a professional team. Qingdao Fullwin Machinery Co.,Ltd has strong product innovation capabilities.
Product Introduction

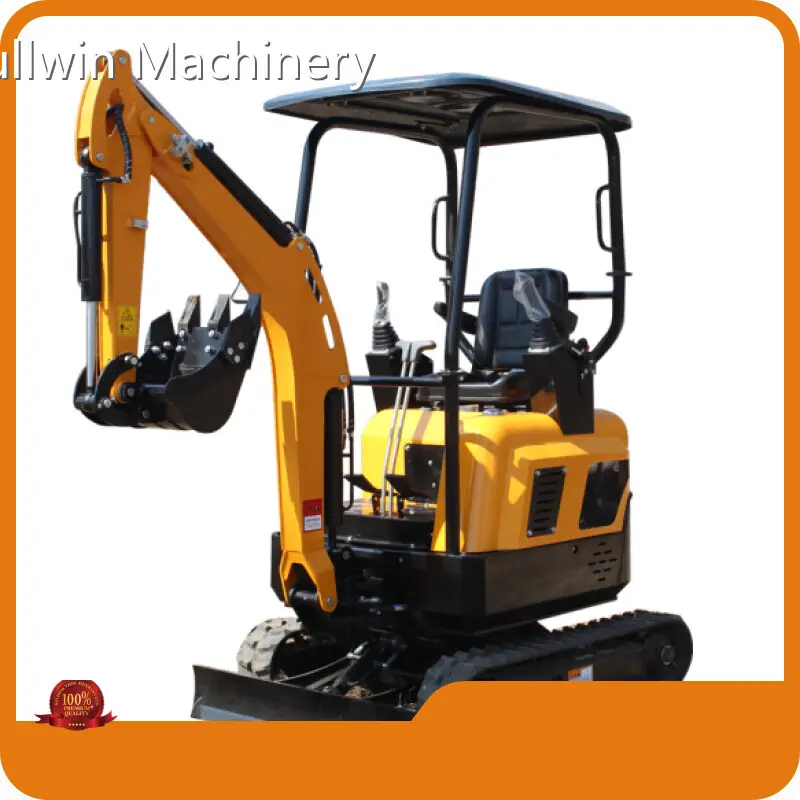

FW18T Mini Excavator embodies a cutting-edge blend of ergonomic design, advanced technology, and superior performance. It boasts flip-up joysticks for seamless access, an LCD display for intuitive information display, and an upgraded seat with armrests for operator comfort. With a complete counterweight and widened 1.1m chassis, the excavator ensures steady operation. Its upper boom cylinder design prevents damage during arm tightening, while foldable foot pedals maximize footroom. The engine is powerful yet eco-friendly, meeting the highest European standards for performance, noise, and emissions. Enhanced crawler tracks ensure durability and longevity, while the hydraulic system's layout simplifies maintenance. Intelligent monitoring instruments and simple liner-type construction further ease maintenance and installation. Equipped with world-class components in pneumatic, electric, and operational parts, FW18T operates with high automation and intelligence, emitting zero pollution. Additionally, its compatibility with air conveyor and filling machine systems streamlines production processes.
Product Details
Product Parameters
|
FW18J specifcation |
||
|
The machine operating weight |
1650kg |
|
|
Bucket capcity |
0.025m³ |
|
|
Engine model |
Kubota D722 |
|
|
Type |
Three-cylinder, in-line, water-cooled, four-stroke, mechanical pump, naturally aspirated |
|
|
Rated power |
10.4kW/2500rpm |
|
|
Max torque |
45Nm/2500rpm |
|
|
Displacement |
0.719L |
|
|
Main performance |
||
|
walking speed |
1.8km/h |
2.3/4.5Km/h |
|
Rotation speed |
12-13 |
|
|
Gradeability |
58%（30°） |
|
|
Ground press |
23kPa |
|
|
Bucket digging force |
9kN |
|
|
Arm Digging Force |
5.5kN |
|
|
Oil and coolant capacity |
||
|
fuel tank |
14.5L |
|
|
hydraulic oil tank |
14.5L |
|
|
engine oil |
3.2L |
|
|
Working range |
||
|
Max digging height（mm） |
2955 |
|
|
Max unloading height |
2077 |
|
|
Maximum digging depth |
2017 |
|
|
Maximum vertical depth（mm） |
1610 |
|
|
Maximum digging radius |
3529 |
|
|
Tail radius（mm） |
655 |
|
|
Minimum turning radius |
1812 |
|
|
Bulldozer lift maximum |
236 |
|
|
Maximum sinking depth |
229 |
|
|
Swing arm deflection Angle |
50° |
|
|
Swing arm deflection Angle tothe right |
52° |
|
|
Whole machine size |
||
|
Overall length |
3329 |
|
|
Overall width |
990 |
|
|
Overall height（mm） |
2267 |
|
|
Dozer board height（mm） |
210 |
|
|
Track plate width（mm） |
200 |
|
|
Track gauge（mm） |
790（1100） |
|
|
Track grounding length（mm） |
1190 |
|
|
Minimum ground clearance（mm） |
153 |
|
|
Tail swing radius（mm） |
655 |
|
Company Advantage
• Fullwin Machinery was established in In the past years, we have continuously improved the R&D capability and have accumulated industry experience. We are dedicated to providing more and better products and services.
• Our company will try our best to meet the needs of new and old customers and provide excellent services for them.
• Fullwin Machinery is located at the intersection of different highways. The great geographic location, traffic convenience, and easy distribution make it an ideal place for the sustainable development of the enterprise.
• The sales network of our products is spread all over the world.
Compared with similar products, Fullwin Machinery produces mini excavator,mini skid steer loader,forklift and attachment etc that are more fashionable, more environmentally friendly and more energy-saving. Feel free to contact us!
