Product details of the top construction machinery manufacturers
Quick Detail
Provided Fullwin Machinery top construction machinery manufacturers is made utilizing fine material. The product performance is reliable, durable, welcomed by users. Thanks to its good characteristics, the product has found a wide application in the global market.
Product Introduction
Based on the professionalism of pursuing excellence, we strive for perfection in every detail of the product.
Product Details

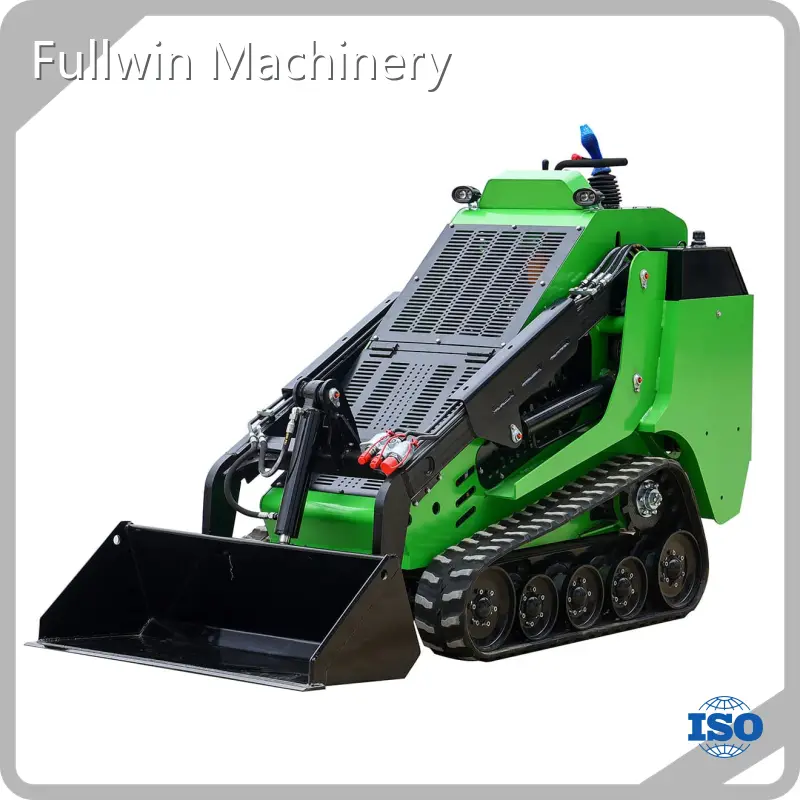

The FY55J control console is designed with user-friendliness in mind, enabling operators to learn how to use it effectively without the need for extensive and complex training sessions. This thoughtful design ensures that even those with limited experience can become proficient quickly. Additionally, users can select between Kubota and Perkins engines, which allows them to tailor their choice to meet their specific operational needs. This flexibility ensures optimal performance suited to various requirements. The console also provides operators with the ability to achieve precise control over hydraulic actuators, resulting in accurate operation and correct positioning. This level of control not only enhances productivity but also contributes to extending the overall lifespan of the equipment across a wide range of diverse operating environments. As a result, users can experience improved efficiency and reliability in their tasks.
Product Details
Product Parameters
|
FY55J Mini Skid Steer Loader Specifications |
|||||||
|
Overall Dimension (mm) |
1700*920*700 |
||||||
|
Weight (kg ) |
175 |
||||||
|
Max Trenching Depth (mm) |
900 |
||||||
|
Single Trenching Width (mm) |
155 |
||||||
|
Chain Rotary Speed (m/min) |
154 |
||||||
|
Max Working Height (mm) |
2420 |
||||||
|
Max Pin Height (mm) |
2099 |
||||||
|
Max Dump Height (mm) |
1617 |
||||||
|
Unloading Distance At Highest Position (mm) |
615 |
||||||
|
Bucket Swing Angle |
79° |
||||||
|
Bucket Unloading Angle |
36° |
||||||
|
Opening-closing Angle |
43° |
||||||
|
Angle Of Departure |
30° |
||||||
|
Total Height( mm) |
1607 |
||||||
|
The Height From The Ground (mm) |
300 |
||||||
|
Wheelbase(mm) |
1065 |
||||||
|
No Bucket Length(mm) |
2200 |
||||||
|
Total Width(mm) |
1033 |
||||||
|
Bucket Width(mm) |
1140 |
||||||
|
Total Length(mm) |
2752 |
||||||
|
Turning Radius (F) (mm) |
2198 |
||||||
|
Engine |
Model |
PERKINS 403J-11 |
|||||
|
Rated Power（KW/HP） |
18.5/25 |
||||||
|
Rotation speed（rpm） |
3000 |
||||||
|
Noise（Db） |
≤95 |
||||||
|
Hydraulic System |
System Pressure（Mpa） |
20 |
|||||
|
Working Time（s） |
Lifting |
Uninstall |
reduce |
||||
|
3.89 |
1.6 |
3.35 |
|||||
|
Configuration parameters |
Loading weight (Kg) |
300 |
|||||
|
Bucket capacity (m3) |
0.14 |
||||||
|
Maximum lifting force (Kg) |
1258 |
||||||
|
Walking speed(Km/h) |
0-8 |
||||||
|
Operating Weight (kg) |
1775 |
||||||
|
Machine weight (kg) |
1450 |
||||||
|
Main Pump |
Qty: 2 |
||||||
|
Main Pump Flow (L/min) |
24.5*2 |
||||||
|
Auxiliary Pump Flow (L/min) |
19.44 |
||||||
|
Auxiliary Pump |
Qty: 1 |
||||||
|
Main Valve |
Qty :4 |
||||||
Company Introduction
Fullwin Machinery has been always hard working to develop more and better top construction machinery manufacturers. Except for having many production lines, Qingdao Fullwin Machinery Co.,Ltd also has introduced many advanced production machines for top construction machinery manufacturers. Fullwin Machinery provides customers with quality products and services; Fullwin Machinery creates value for customers!
Our products are reliable in quality, various in type and affordable in price. Customers in need are welcomed to contact us. We sincerely hope to reach friendly cooperation, common development and mutual benefit with you!
